Advantech PCI-1724U
14-bit, 32-ch Isolated Analog Output Card
Features
- 32 high-density analog output channels
- Flexible Output Range: +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA
- Synchronized output function
- Keeps output values after system hot reset
- BoardID™ switch
Description

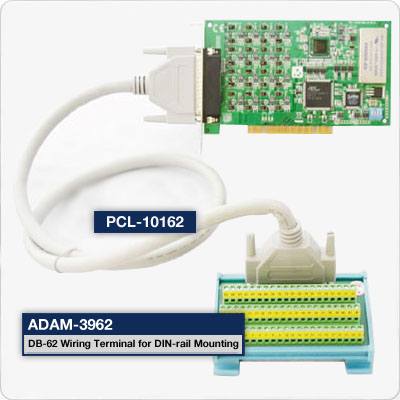

The Advantech PCI-1724U is an isolated high-density multiple channel analog card for the PCI bus, where each analog output channel is equipped with a 14-bit DAC.

Ordering Information
| Part Number | Description |
| PCI-1724U-AE | 14bit, 32ch Isolated Analog Output Card |
| Accessory | |
| ADAM-3962-AE | DB-62 Wiring Terminal, DIN-rail Mount |
| PCL-10162-1E | DB-62 Shielded Cable, 1m |
| PCL-10162-3E | DB-62 Shielded Cable, 3m |
