description

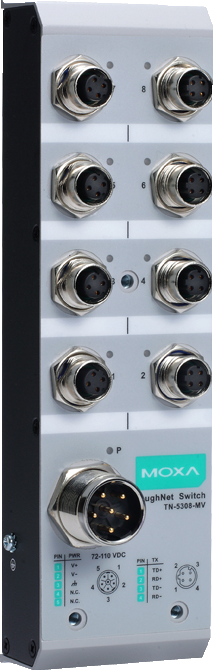

The ToughNet TN-5308 series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock.
The TN-5308 series Ethernet switches provide 8 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
Models with an extended operating temperature range of -40 to 75°C are also available. The TN-5308 series Ethernet switches are compliant with EN50155/50121-3-2/50121-4 (railway applications), NEMA TS2 (traffic control systems), and e-mark (vehicles) requirements, making the switches suitable for a variety of industrial applications.
further informations
| Available Models | Power Supply |
Standard Temperature
(0 to 60˚C) | Wide Temperature
(-40 to 75˚C) | LV
12/24/36/48 VDC
(7 to 60 V) | MV
72/96/110 VDC
(50.4 to 154V) | | TN-5308-LV | TN-5308-LV-T | √ | --- |
| TN-5308-MV | TN-5308-MV-T | --- | √ |
| Optional Accessories (must be purchased separately) |
DK-TN-5308: | DIN-Rail mounting kit for the TN-5308 series | | M12 Patch Cords and Connectors |
