Advantech PCI-1757UP
24-ch Digital Input/Output Low Profile Universal PCI Card
similar products
print this page
add to the notes
show the notes
DataSheet (75.4 kB) properties
- Low profile PCI form card
- Universal PCI card
- 24 TTL level digital I/O channels
- Emulates mode 0 of 8255 PPI
- Buffered circuits provide higher driving capability
- Output status read-back
- I/O configurable by software or on board DIP switch
- Keeps port I/O settings and digital output states after hot reset
- BoardID™ switch
- Convenient DB-25 connector
- Dry/wet contact support
description
Advantech PCI-1757UP is a 24-channel DI/O low profile PCI card that meets the PCI standard REV.2.2 (universal PCI expansion card). The card also works with 3.3 V and 5 V PCI slots, and provides you with 24 parallel digital input/output channels that emulate mode 0 of the 8255 PPI chip. However, the buffered circuits offer a higher driving capability than the 8255.
further informations
Ordering Information
| Part Number | Description |
| PCI-1757UP-AE | 24ch TTL Digital I/O Low-profile Card |
| Accessory | |
| ADAM-3854-AE | 4-ch Power Relay for DIN-rail Mounting |
| ADAM-3864-AE | 4-ch DIN-rail SSRI/O Carrier Module |

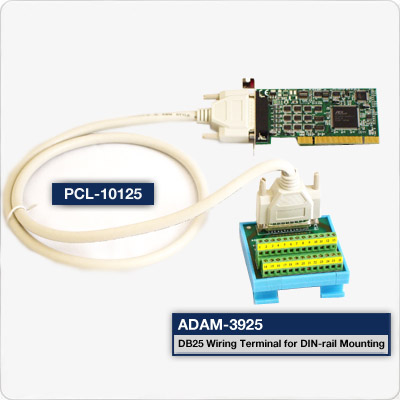

| ADAM-3925-AE | DB-25 Wiring Terminal, DIN-rail Mount |
| PCL-10125-1E | DB-25 Shielded Cable, 1m |
| PCL-10125-3E | DB-25 Shielded Cable, 3m |
| PCLD-7216-AE | 16-ch SSR Carrier Module Board |
| PCLD-785B-AE | 24-ch Relay Output Terminal |
| PCLD-885-AE | 16-ch Power Relay Output Terminal |
